This article describes the telemetry fields provided by CONNEX.

Please note that the top OSD bar is visible only when CONNEX Air Unit is connected to a flight controller, receiving its telemetry information.

The fields on the bottom OSD bar are generated by CONNEX systems and will therefore appear even when the flight controller is not connected.

Note that the OSD button on the Ground Unit selects OSD On/Off for both OSD bars.

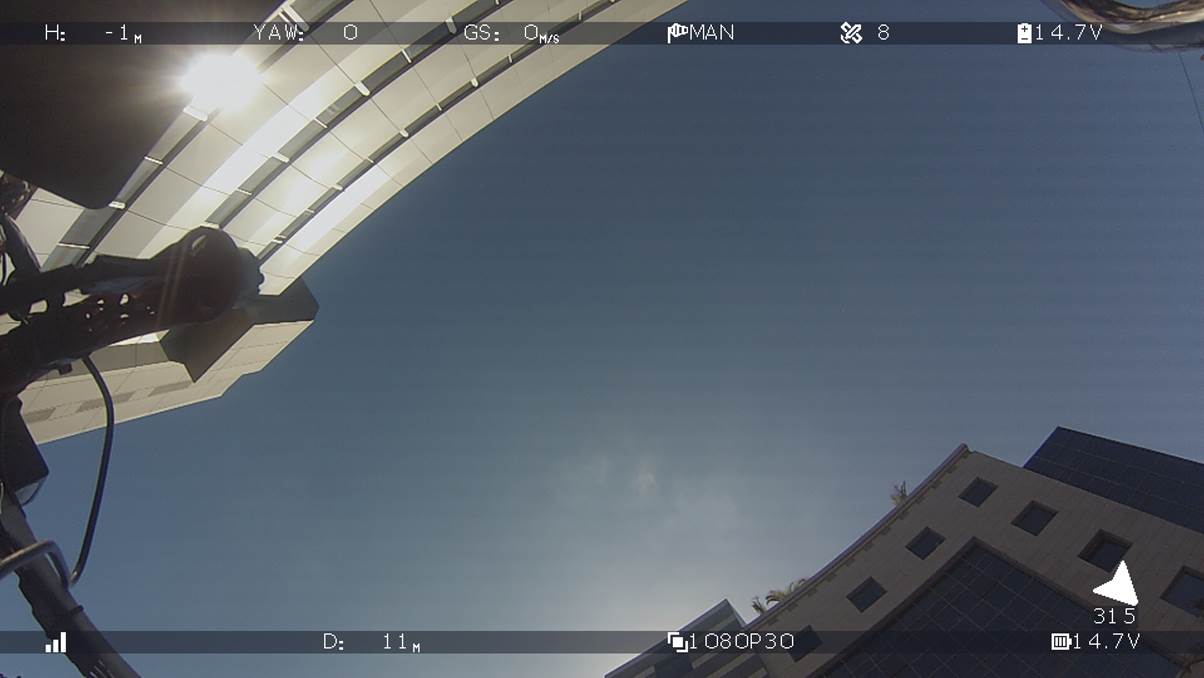

Telemetry OSD (the top OSD bar) from left to right:

  1. H: Drone height (in the image above - "-1[m]")

  2. YAW: Rotation around the vertical axis ("0[deg]")

  3. GS: Ground Speed in m/s ("0[m/s]")

  4. Flight Mode: ("MAN")

    Flight Mode

    Description

    STBL

    Stabilize

    ACRO

    Acro

    ALTH

    Alt Hold

    AUTO

    Auto

    GUID

    Guided

    LOIT

    Loiter

    RTL

    RTL

    CIRC

    Circle

    POS

    Position

    LAND

    Land

    DRFT

    Frift

  5. Number of satellites ("8")

  6. Drone Battery Voltage ("14.7")

  7. Home Arrow (located on the bottom right): Presents the direction of the current drone’s GPS reading vs. “Home Location” position. Icon has 45 degrees resolution, while the numeric value has 1 degree resolution

CONNEX OSD (the bottom OSD bar) from left to right:

  1. Link quality ("Good")

  2. D: LOS Distance between Air and Ground Units ("11[m]")

  3. Video Resolution ("1080P30")

  4. Air Unit Power voltage ("14.7[V]")
