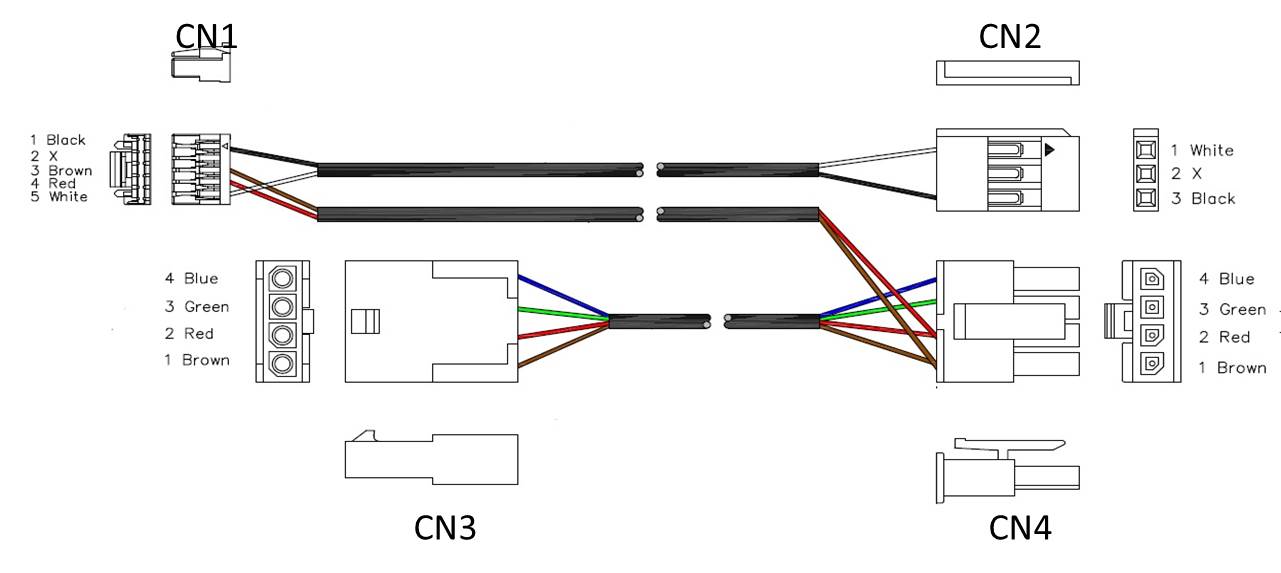

This article describes the pinout of the CANBUS/S.BUS cable pinout:

CN1

CN2 (SBUS)

CN3 (CAN-M)

CN4 (CAN-F)

Color

1 (GND)

3

Black

2

3 (CL)

4

4

Brown

4 (CH)

3

3

Red

5 (S)

1

White

1

1

Blue

2

2

Green

Important

Important:

  • CAN-BUS port and USB port (for firmware upgrade) shall not be connected at the same time

  • Do not connect connect the S.BUS/Can-bus cable under voltage
