How To Connect CONNEX Air Unit to DJI A2 flight controller

Submit a request
  1. CONNEX Support
  2. CONNEX
  3. Operational FAQ
Avatar
Permanently deleted user

Important: relevant for FW version 2.0.11 and above.

In order to connect CONNEX Air Unit to DJI A2 flight controller, you should use the CAN-BUS/S.BUS cable (see CANBUS/S.BUS cable pinout for more details).

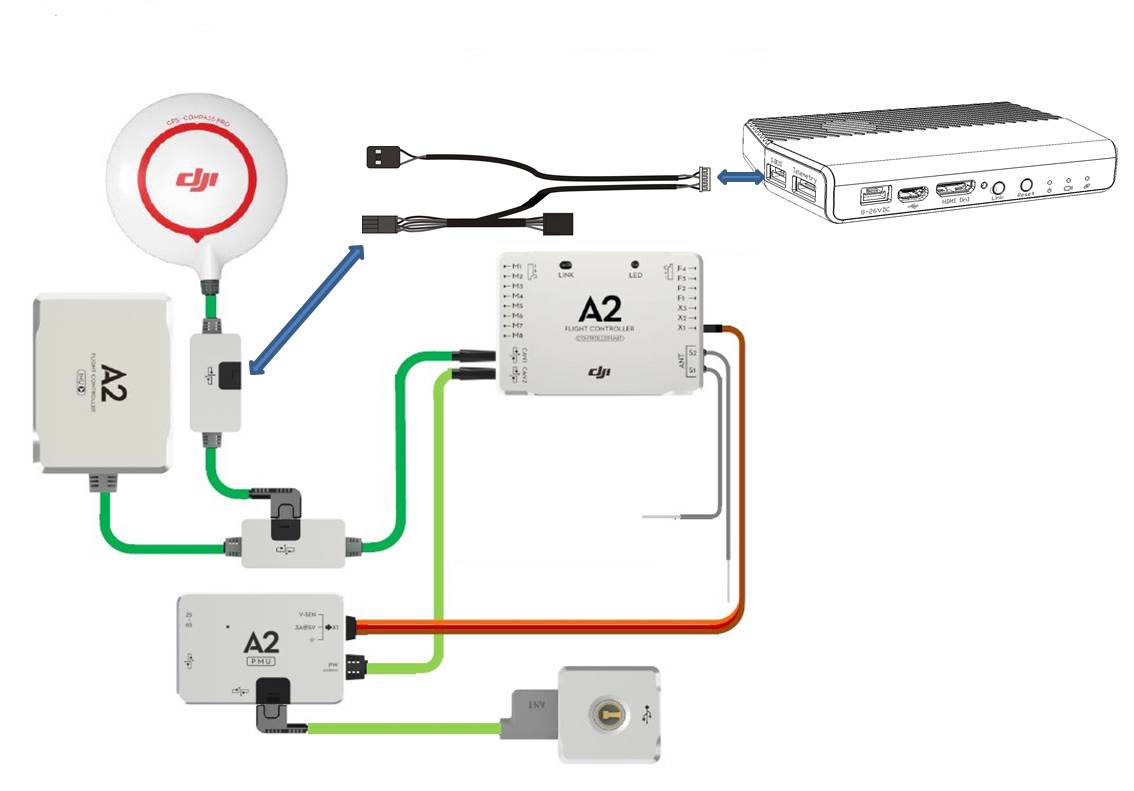

Connect the 5 pins connector to the S.BUS/CAN-BUS port in the CONNEX Air Unit and the CAN-BUS connector to Can 1 port in the A2 flight controller (see diagram below):

Note

Note: A2 diagram was taken from DJI official website.
