MavLink/CANBus/SBUS cable for Connex Mini

Submit a request
Avatar
Shahar Keren

The following article covers the cable and pin-out for the Connex mini devices.

In order to use the CanBus protocol in the Connex Mini, the following cable should be used and connected to the "CTRL" port on the air unit:

The above cable has the following pin-out:

Pin 1 (black wire) - GND

Pin 3 (white wire) - SBUS IO

Pin 5 (red wire) - CNABUS high

Pin 6 (brown wire) - CNABUS low

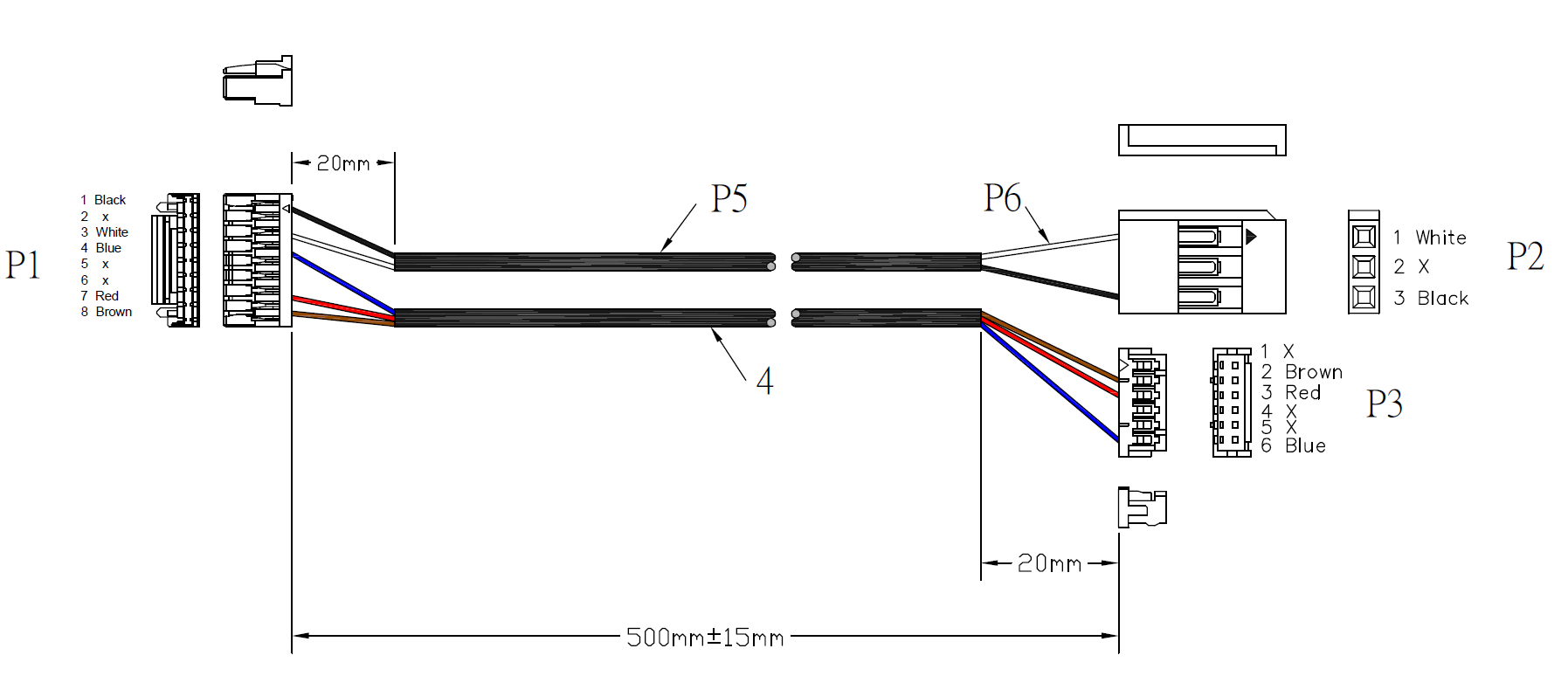

In order to use the MavLink protocol in the Connex Mini, the following cable should be used and connected to the "CTRL" port on the air unit:

The above cable has the following pin-out:

Pin 1 (black wire) - GND

Pin 3 (white wire) - SBUS IO

Pin 4 (blue wire) - GND

Pin 7 (red wire) - Tx (CONNEX Tx)

Pin 8 ( brown wire) - Rx (CONNEX Rx)

Note

Note: In order to connect the CONNEX unit to another unit, there must be a cross between the Tx and the Rx of the other unit (i.e., the Tx of the CONNEX must be connected to the Rx of the other unit).
