The following sections provide a general overview of the application's main screens and features:

  • My Device Screen

  • Main Menu options

  • Basic Application Components

My Device Screen

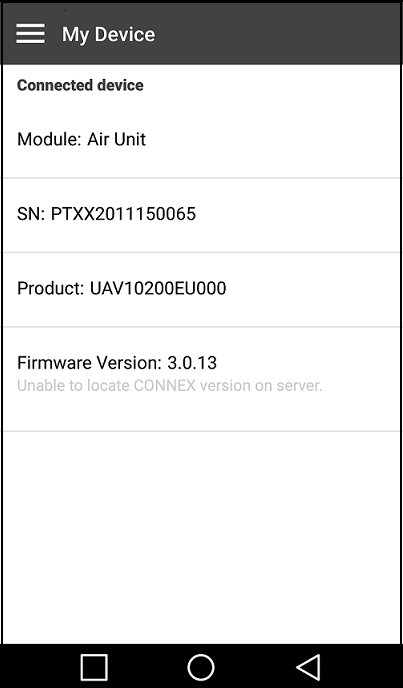

When you launch the CONNEX Management application, the My Device screen opens:

This screen displays the following information:

  • Module: Specifies whether the connected unit is an Air Unit (Tx) or a Ground Unit (Rx).

  • SN: The unique serial number of the unit.

  • Product: The product ID of the unit.

  • Firmware Version: The version of the firmware currently installed on the unit. The application automatically checks with the AMIMON server whether the latest firmware version of the connected unit is installed.

    If the latest version is installed, a Firmware Version is Up to Date message is displayed.

To exit the My Device screen and view the menu options, press the Navigation icon, at the upper left corner of the page:

Main Menu Options

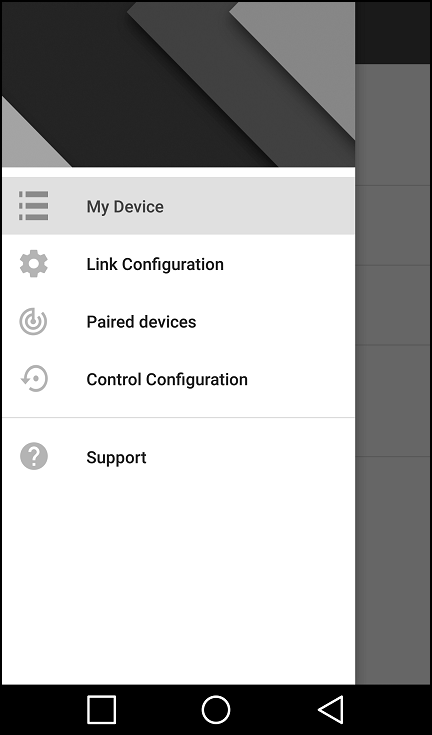

The main menu screens are shown below (Air Unit on left and Ground Unit on right). Note that when a Ground Unit is connected to your mobile device, only the My Device and Support options are available.

The menu options are summarized in the following table:

Option

Description

Supported for

Ground Unit

My Device

Displays details about the Air or Ground Unit that is connected.

Yes

Link Configuration

Allows you to configure the link between an Air Unit and its Ground Units.

No

Paired Devices

Lists the Ground Units that are registered with the connected Air Unit , and enables you to unregister one or more of them.

No

Control Configuration

Allows you to view and modify Fail Safe parameters.

No

Support

Redirects you to the CONNEX online Help Center.

Yes

Basic Application Components

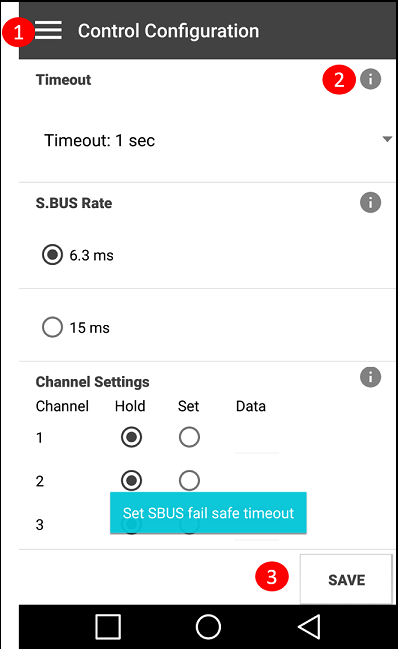

This section explains general features that enable you to work with the mobile application quickly and effectively. The components are described in the table below the diagram.

Number

Feature Name

Description

1

Navigation button

Use this button to navigate back to the main menu.

2

Information icon

Press these icons to open popups that provide short explanations about the relevant feature. An example is shown in the figure above.

3

Save button

Press this button to save any changes that you have made on a page. If you navigate back to the main menu without pressing Save, your changes will not be saved.
